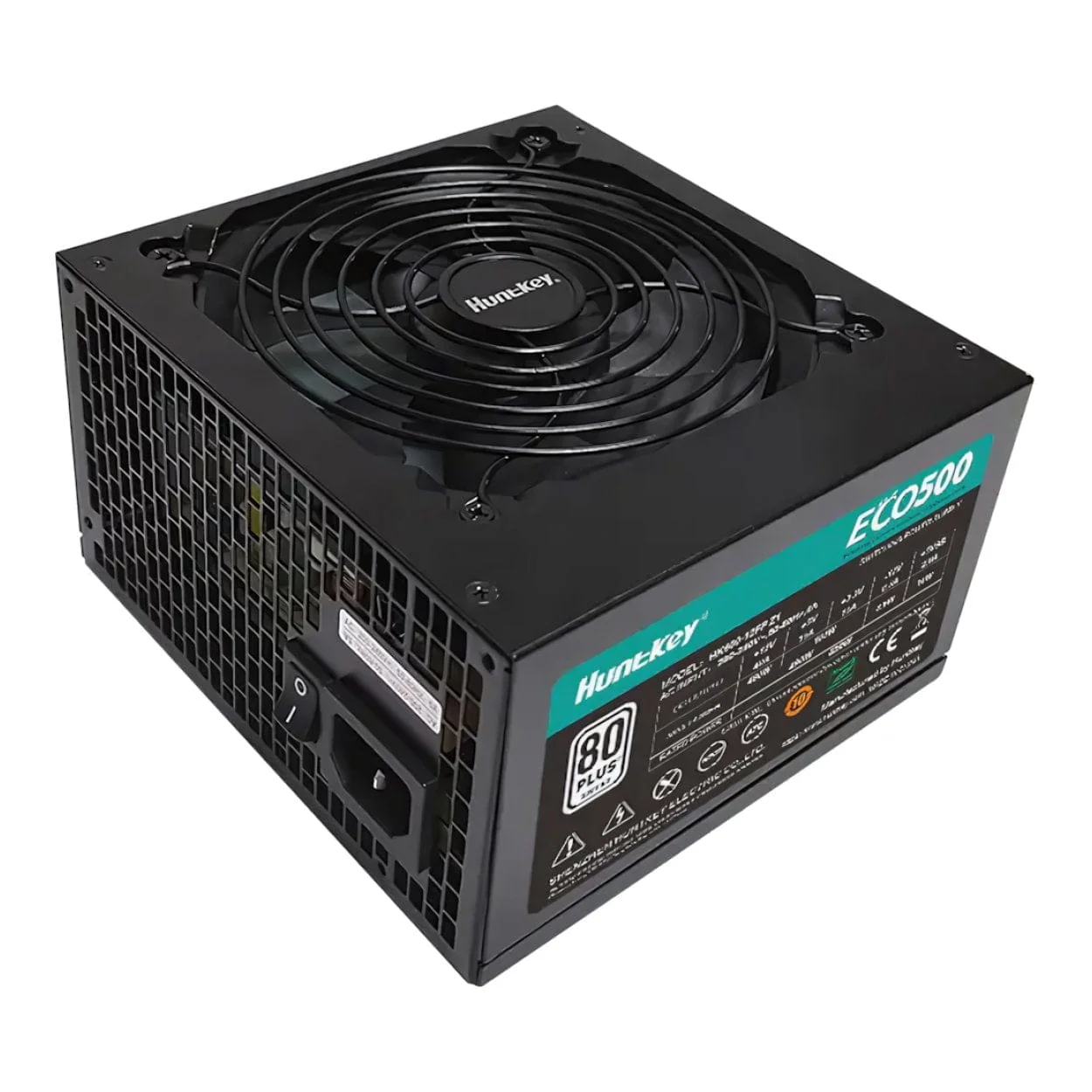

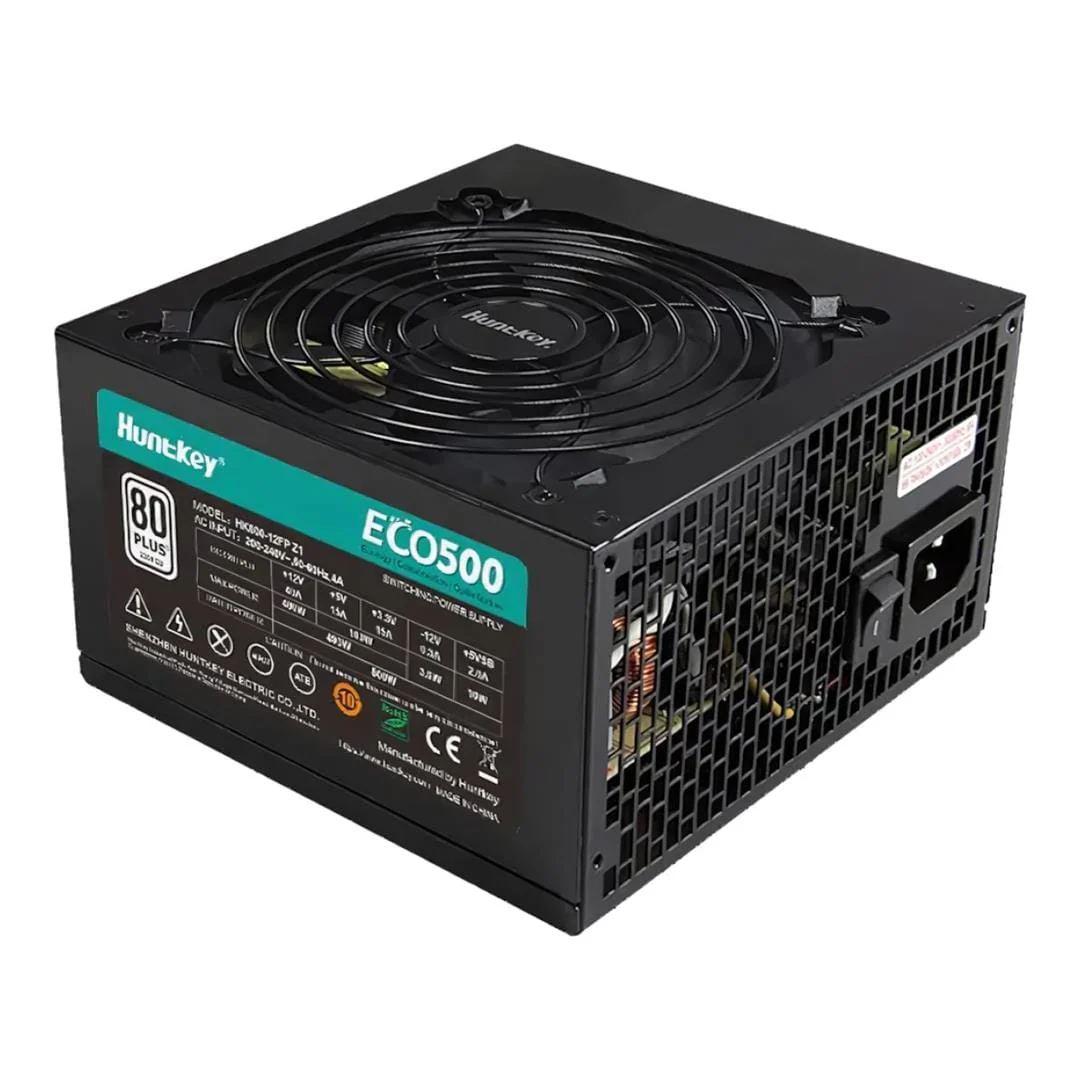

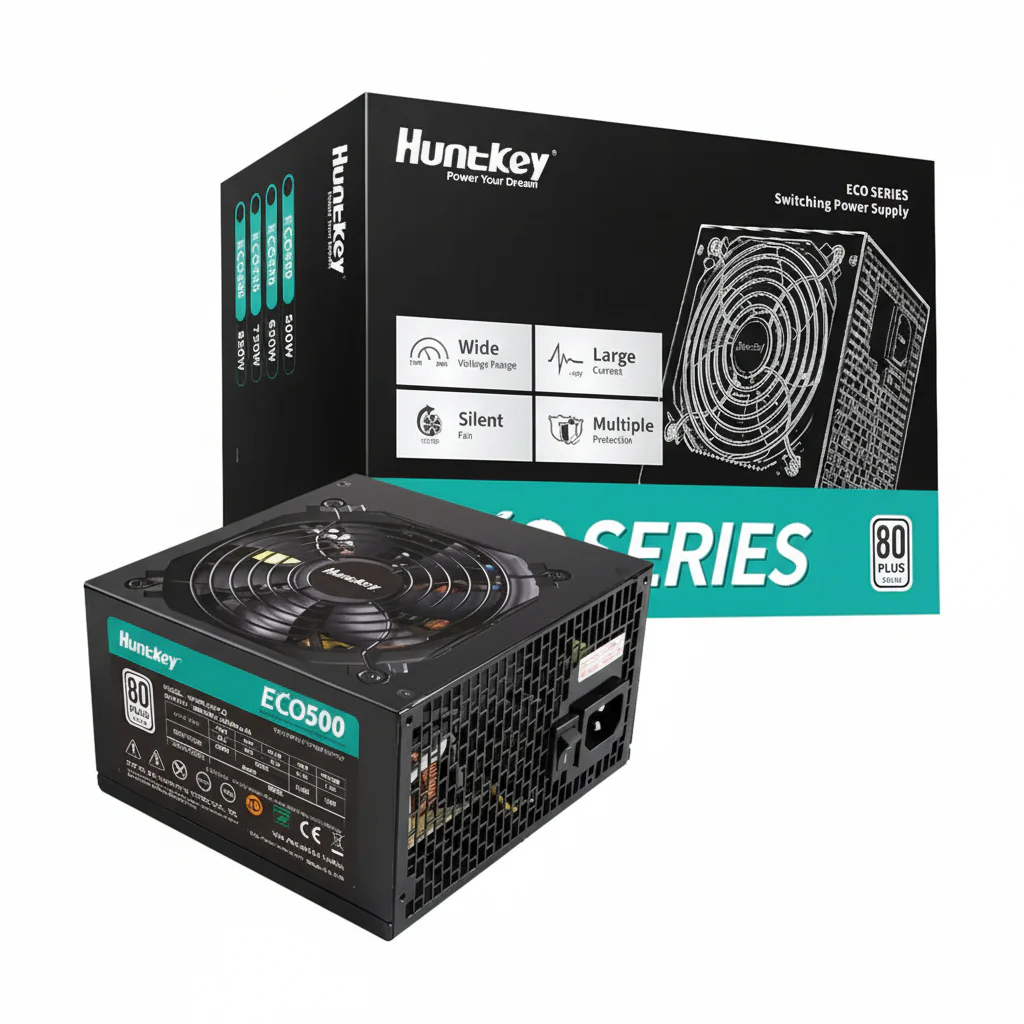

Huntkey ECO500 500W 80 Plus White Power Supply, Active PFC, 120mm Fanā
$55.04
The Story
- Model: Huntkey ECO500 (P28-600120001R)
- Power supply type: ATX desktop power supply
- Rated output power: 500 W
- Efficiency certification: 80 Plus White certified
- Input voltage: 150 - 264 V AC
- AC input: 200-240V~ 4A 50-60Hz
- PFC: Active Power Factor Correction
- Cooling fan: 120 mm
- Protections: SCP (Short Circuit Protection), OVP (Over Voltage Protection), OPP (Over Power Protection)
- Certifications: CE, CB, RoHS
- Dimensions: 140 x 150 x 86 mm
- Connectors:
- ATX 20+4-pin: 1
- CPU 8-pin/4+4 pin: 1
- PCI-E 6+2 pin: 2
- SATA: 3
- Molex (Peripheral): 3
- DC output ratings:
- +3.3V: 25A
- +5V: 25A
- +12V: 40A (combined 480W)
- -12V: 0.3A
- +5Vsb: 2.0A
- Max combined power:
- +3.3V & +5V: 103W
- +12V: 480W
- Total combined power: 490W
The Huntkey ECO500 500W 80 Plus White power supply is for users building a budget desktop PC who require a reliable, energy-efficient PSU with active PFC, multiple protections, and sufficient connectors for entry-level systems and mid-range graphics cards.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- Model: Huntkey ECO500 (P28-600120001R)
- Power supply type: ATX desktop power supply
- Rated output power: 500 W
- Efficiency certification: 80 Plus White certified
- Input voltage: 150 - 264 V AC
- AC input: 200-240V~ 4A 50-60Hz
- PFC: Active Power Factor Correction
- Cooling fan: 120 mm
- Protections: SCP (Short Circuit Protection), OVP (Over Voltage Protection), OPP (Over Power Protection)
- Certifications: CE, CB, RoHS
- Dimensions: 140 x 150 x 86 mm
- Connectors:
- ATX 20+4-pin: 1
- CPU 8-pin/4+4 pin: 1
- PCI-E 6+2 pin: 2
- SATA: 3
- Molex (Peripheral): 3
- DC output ratings:
- +3.3V: 25A
- +5V: 25A
- +12V: 40A (combined 480W)
- -12V: 0.3A
- +5Vsb: 2.0A
- Max combined power:
- +3.3V & +5V: 103W
- +12V: 480W
- Total combined power: 490W
The Huntkey ECO500 500W 80 Plus White power supply is for users building a budget desktop PC who require a reliable, energy-efficient PSU with active PFC, multiple protections, and sufficient connectors for entry-level systems and mid-range graphics cards.
