The Story

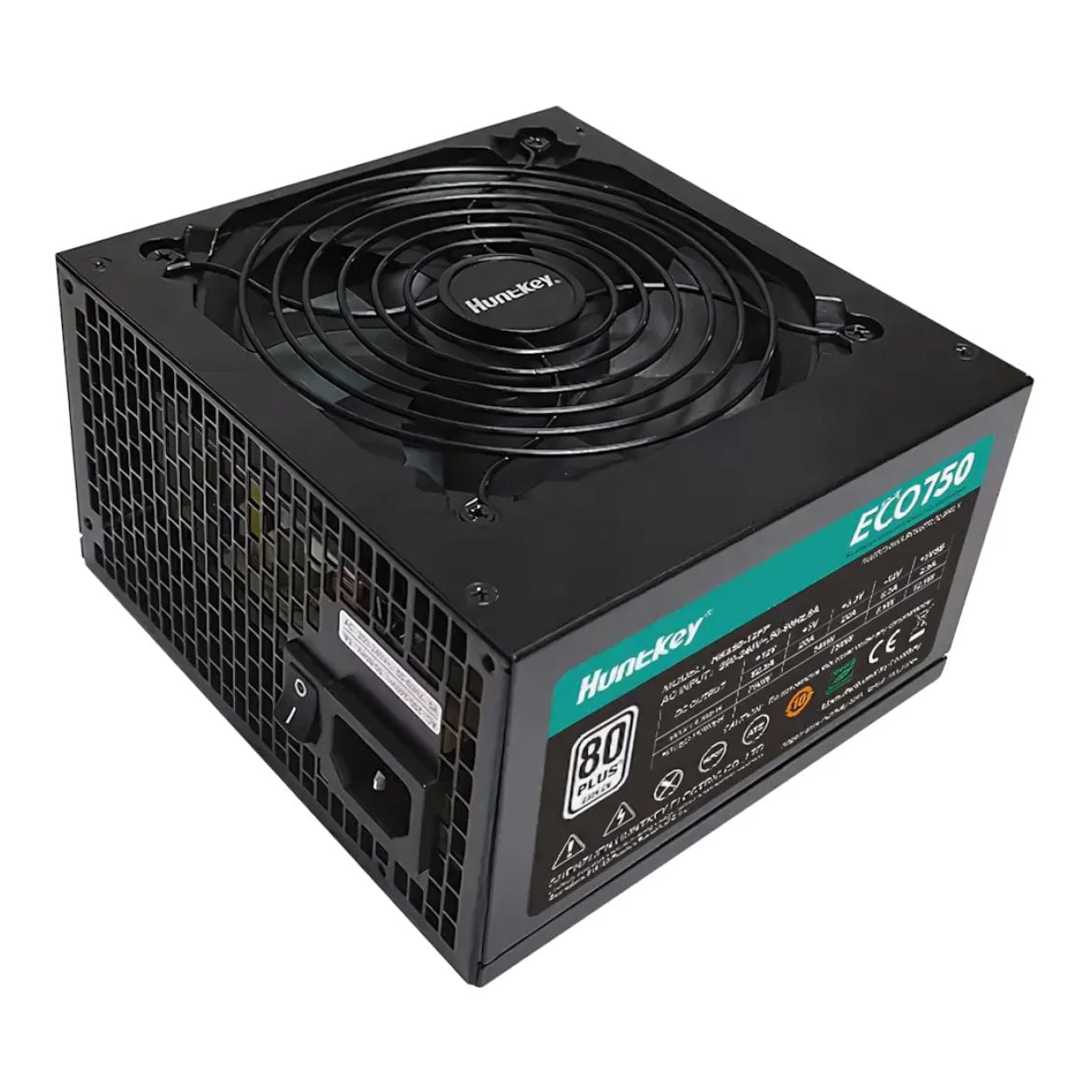

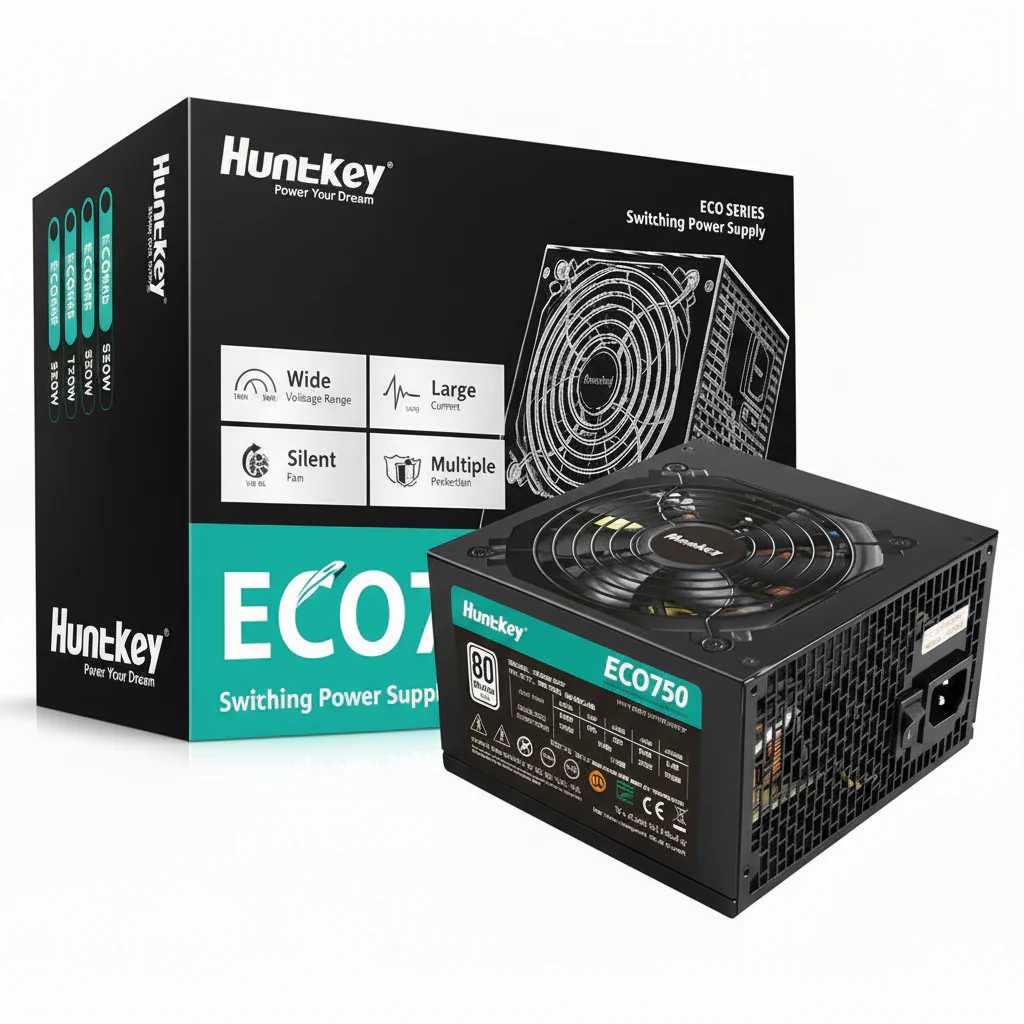

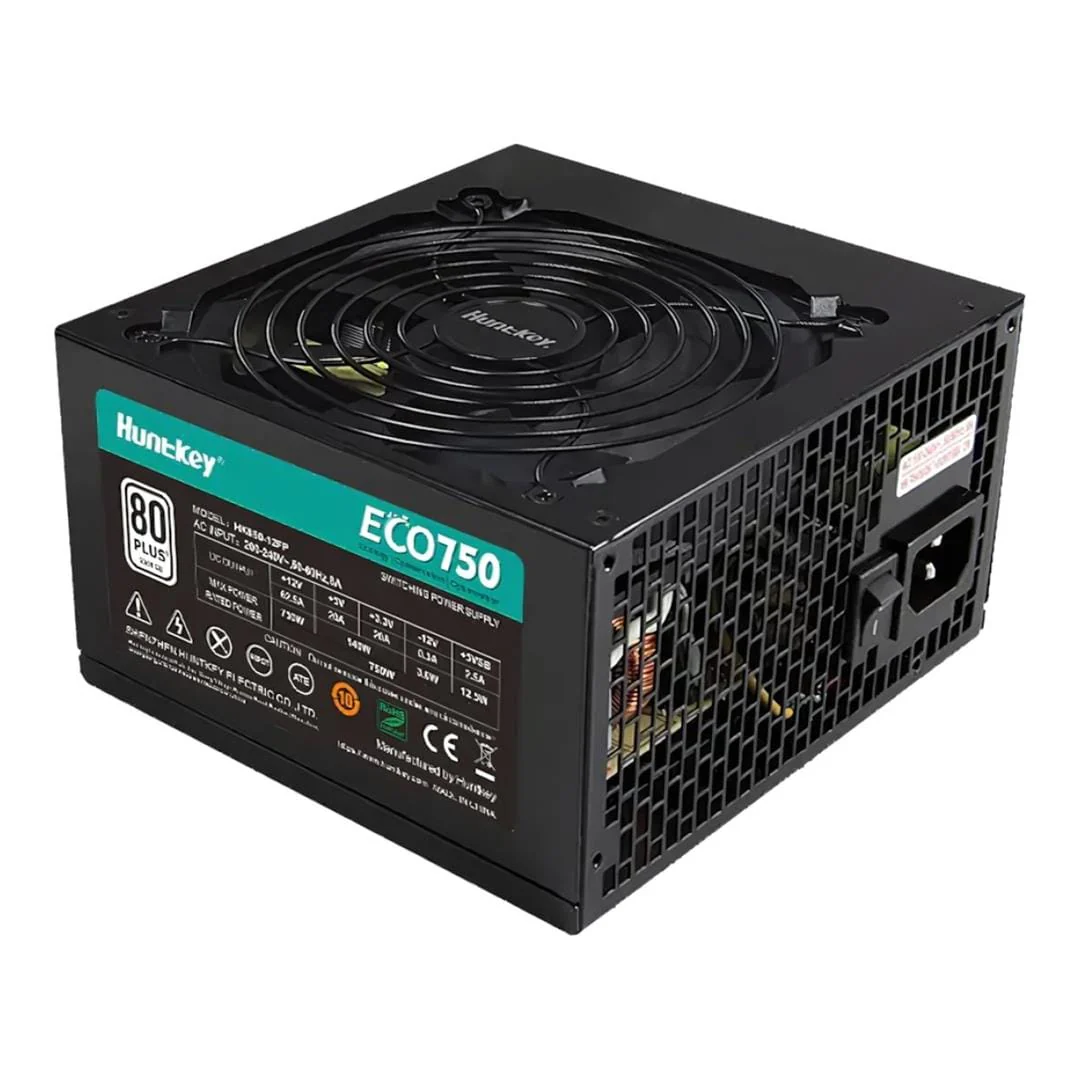

- Model: Huntkey ECO750 (P28-850120000R)
- Power supply type: ATX desktop power supply
- Rated output power: 750 W
- Efficiency certification: 80 Plus White certified
- Input voltage: 150 - 264 V AC
- AC input: 200-240V~ 8A 50-60Hz
- PFC: Active Power Factor Correction
- Cooling fan: 120 mm dual ball bearing fan for extended lifespan
- Protections: SCP (Short Circuit Protection), OVP (Over Voltage Protection), OPP (Over Power Protection)
- Certifications: CE, CB, RoHS
- Dimensions: 140 x 150 x 86 mm
- Connectors:
- ATX 20+4-pin: 1
- CPU 8-pin/4+4 pin: 2
- PCI-E 6+2 pin: 4
- SATA: 3
- Molex (Peripheral): 3
- DC output ratings:
- +3.3V: 20A
- +5V: 20A
- +12V: 62.5A (combined 750W)
- -12V: 0.3A
- +5Vsb: 2.5A
- Max combined power:
- +3.3V & +5V: 140W
- +12V: 750W
- Total power: 750W
The Huntkey ECO750 750W 80 Plus White power supply is for users building a high-performance desktop PC who require a reliable, energy-efficient PSU with active PFC, dual CPU connectors, four PCI-E connectors for multi-GPU setups, and a durable dual ball bearing fan for extended reliability.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- Model: Huntkey ECO750 (P28-850120000R)
- Power supply type: ATX desktop power supply
- Rated output power: 750 W
- Efficiency certification: 80 Plus White certified
- Input voltage: 150 - 264 V AC
- AC input: 200-240V~ 8A 50-60Hz
- PFC: Active Power Factor Correction
- Cooling fan: 120 mm dual ball bearing fan for extended lifespan
- Protections: SCP (Short Circuit Protection), OVP (Over Voltage Protection), OPP (Over Power Protection)
- Certifications: CE, CB, RoHS
- Dimensions: 140 x 150 x 86 mm
- Connectors:
- ATX 20+4-pin: 1
- CPU 8-pin/4+4 pin: 2
- PCI-E 6+2 pin: 4
- SATA: 3
- Molex (Peripheral): 3
- DC output ratings:
- +3.3V: 20A
- +5V: 20A
- +12V: 62.5A (combined 750W)
- -12V: 0.3A
- +5Vsb: 2.5A
- Max combined power:
- +3.3V & +5V: 140W
- +12V: 750W
- Total power: 750W
The Huntkey ECO750 750W 80 Plus White power supply is for users building a high-performance desktop PC who require a reliable, energy-efficient PSU with active PFC, dual CPU connectors, four PCI-E connectors for multi-GPU setups, and a durable dual ball bearing fan for extended reliability.
