M-Link TXE143 8+2 Gigabit PoE Switch 90W 10-Port Unmanaged Network Switch TXE323

M-Link TXE143 8+2 Gigabit PoE Switch 90W 10-Port Unmanaged Network Switch TXE323

The M-Link TXE143 is a high-performance 8+2 Gigabit PoE switch designed for CCTV setups, offices, and small business networks. With IEEE802.3at/af support and a 90W PoE power budget, it delivers stable power and fast data transfer across multiple devices.

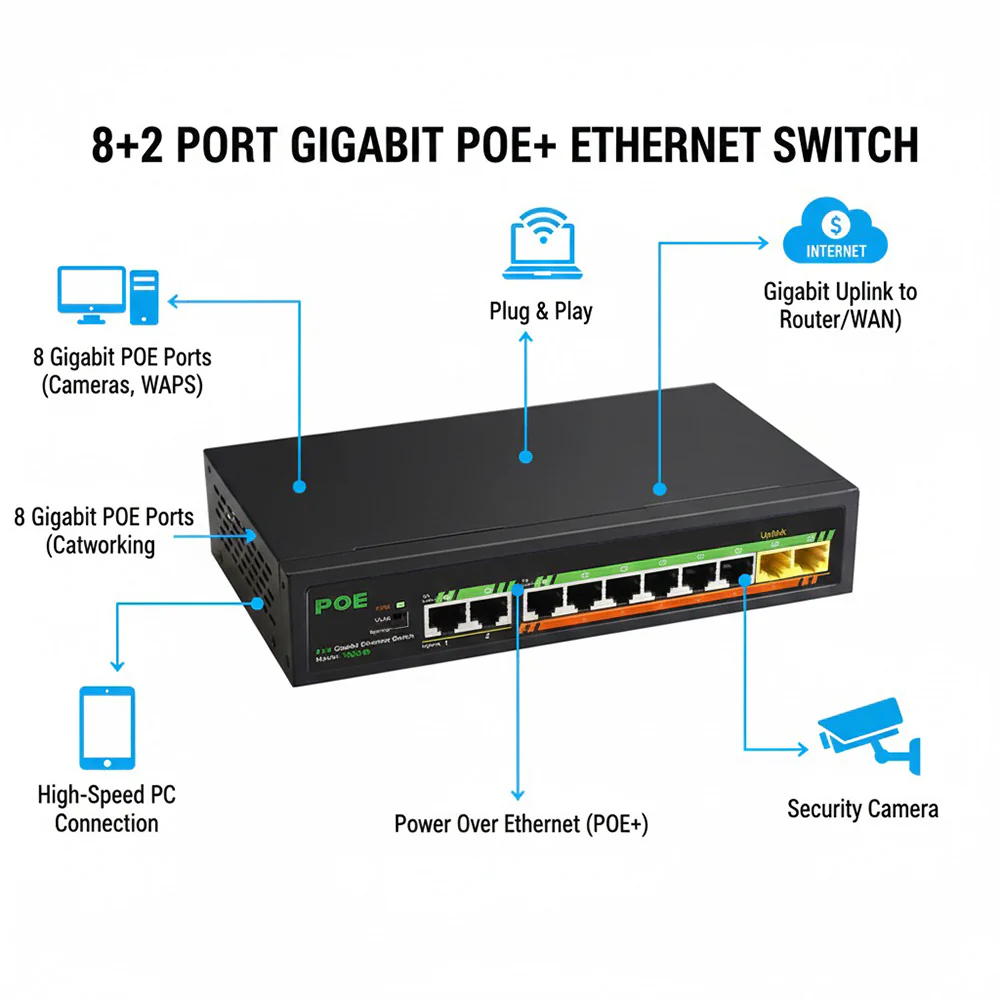

Key Features

• 8 x 10/100/1000Mbps PoE ports + 2 x 10/100/1000Mbps uplink ports
• Supports IEEE802.3at/af PoE standards
• 20Gbps switching capacity for stable, high-speed performance
• Store-and-forward data transfer method
• PoE budget: 90W with automatic power detection
• Packet forwarding rate: 14.88Mpps
• Indicators: Power, Link/Activity per port
• Unmanaged plug-and-play design for easy installation
• Compatible with Cat3/4/5/5e cables up to 100m
• Power supply: 180–240VAC, 50/60Hz

Specifications

• Model Name: TXE323
• Chipset: AN8855H+TMI7608
• Standards: IEEE802.3, 802.3u, 802.3ab, 802.3x, 802.3az, 802.1q, 802.3at/af
• Interface: 10 x 10/100/1000Mbps auto-negotiation ports
• Network Media: Cat3/4/5/5e (up to 100m)
• Switching Capacity: 20Gbps
• PoE Power Pins: 1/2(+) and 3/6(-)
• Power Consumption: 95W max (PoE on)
• Dimensions: 220 × 160 × 40mm
• Operating Temperature: 0°C – 45°C
• Storage Temperature: -40°C – 70°C
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing

Box Contents

• M-Link TXE143 8+2 Gigabit PoE Switch
• 2-Pin Power Cord
