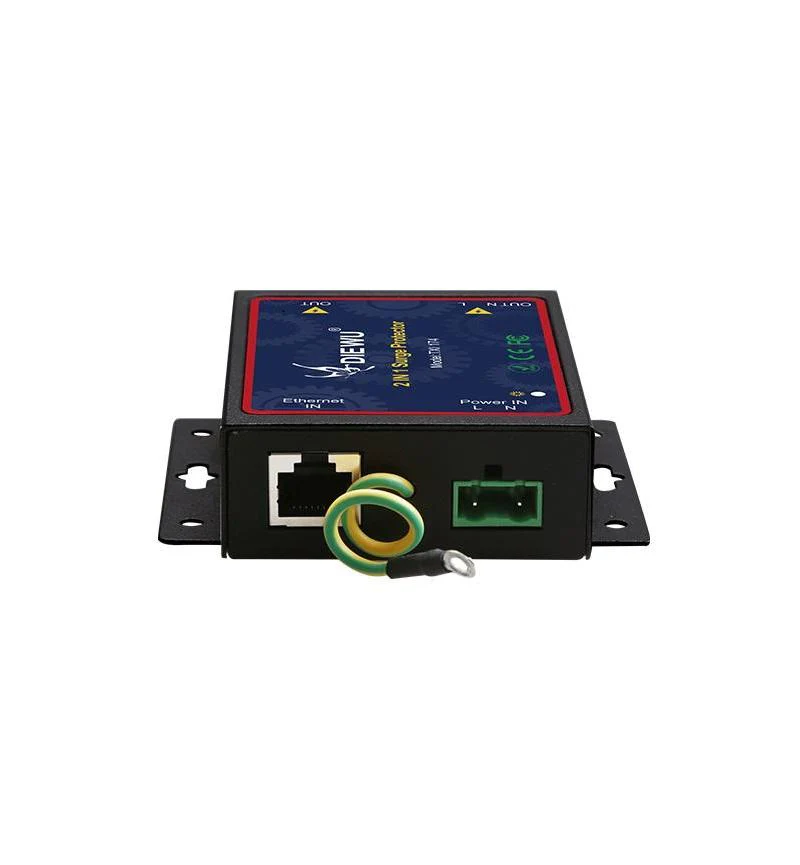

Matrix Network Lightning Protector – RJ45 & Power Surge Guard

Safeguard your networking and power equipment from voltage surges with the Matrix Network Lightning Protector. This 2-in-1 surge protector is engineered to defend both network lines and AC power connections against lightning strikes and electrical disturbances, ensuring uninterrupted, safe data and power transmission.

Key Features

• 2-in-1 protection for network and power circuits
• RJ45 × 2 and Power Connector × 2 interface design
• Supports up to 1000 Mbps Gigabit Ethernet
• Maximum discharge current: 10 kA (8/20 µs)
• Low insertion loss of only 0.5 dB
• Protects lines 1/2, 3/6, 4/5, 7/8 for complete Ethernet coverage
• Durable enclosure suitable for indoor and semi-industrial environments

Specifications

• Model: TXI 174
• Protection Circuit: Network 1/2 3/6 4/5 7/8 | Power L/N
• Ethernet Speed: 1000 Mbps
• Insertion Loss: 0.5 dB
• Maximum Discharge Current (Imax): 5 kA (10×), 10 kA (1×) (8/20 µs)
• Working Voltage: AC 220 V
• Dimensions: 86 × 84 × 25 mm

Environmental Conditions

• Operating Temperature: –40 °C to 85 °C
• Storage Temperature: –40 °C to 85 °C
• Humidity (Operating): 10 – 90 % RH (non-condensing)
• Humidity (Storage): 5 – 90 % RH (non-condensing)

Applications

Ideal for protecting network routers, IP cameras, VoIP systems, and power supplies from lightning and surge events — essential for professional network reliability in homes, offices, and industrial setups.
