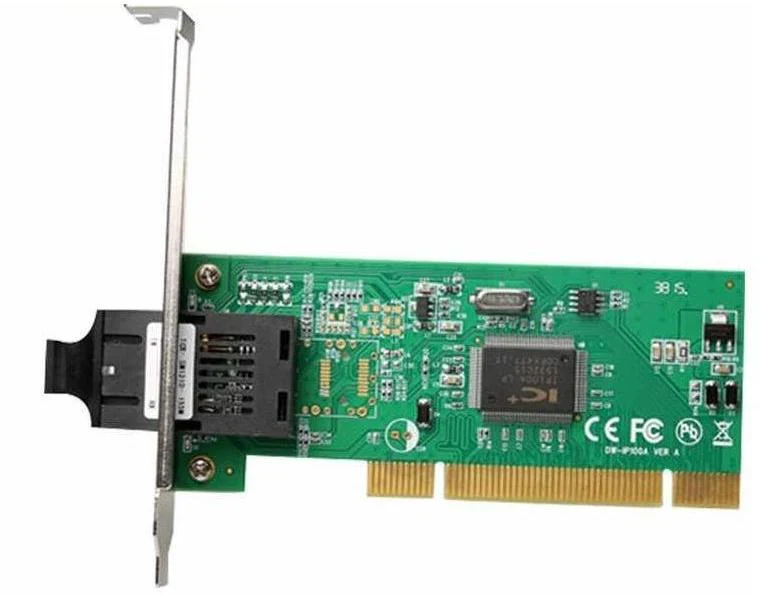

Microworld PCI Fibre card 100 Mbps

Microworld PCI Fibre card 100 Mbps, 20 km transmission distance, PCI Interface

Features:

• Single chip 10/100BASE, half or full duplex Ethernet Media Access Controller
• IEEE 802.3 compliant 100BASE-TX/100BASE-FX/10BSE-T
• PCI Bus master scatter/gather DMA on any byte boundary
• Full operation with PCI Clock from 25 MHz to 33 MHz
• PCI Revision 2.2 compliant
• On-chip transmit and receive FIFO buffers
• On-chip LED drivers
• Power management capabilities for ACPI 1.0 compliant systems
• Wake On LAN support
• Management statistics gathering
• IP multicasts receive and filter support using 64-bit hash table
• Transmit polling
• Auto pad insertion for short packets
• Programmable minimum Inter Packet Gap
• Programmable transmit and receive FIFO watermarks
• Smart Cable Analyzer (SCA) Support
• Capable of using 93C46 or 93C56 EEPROM
• On-chip crystal oscillator
• On-chip voltage regulator
• 2.5/3.3V CMOS with 5V tolerant I/O
• 0.25µm technology
• 128-pin PQFP

Specifications:

Product Code	TXA025
PCI FIRE CARD - TXA025
Model number	TXA025
Chipset	ICplus IP100A Ethernet Controller
Port number	2 x SC or 1 x SC
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p
Data rate	10/100Mbps
Transmission distance	20 km
Interface	PCI
LED	Indicator 10/100Mb (Link/Act)
Dimension	120 x 51 x 13.8mm
Support OS	Windows 10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000
	Windows Server 2012, 2008 R2, 2003(32/64)
	Mac OS 10.x (Intel based, tested up to 10.9)
	Linux 2.4.x and later (Tested up to 3.5)
