$155.55
TRANSCEND 32GB INDUSTRIAL MICROSDHC CLASS10 CARD - MLC—
$155.55
The Story

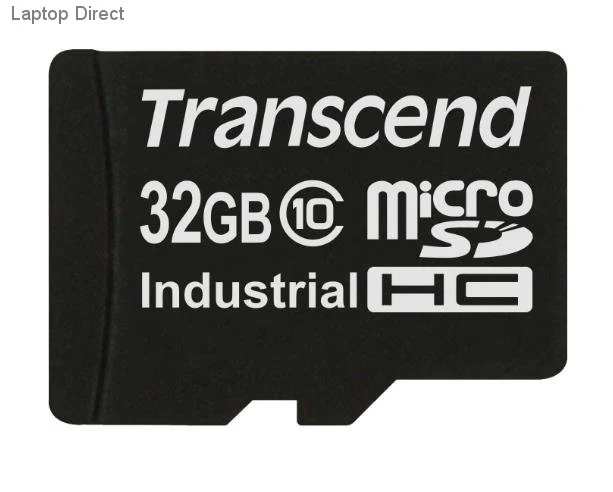

Transcend Industrial Micro Secure Digital Card - 32GB - SDHC Class10 - MLC Type Flash - MTBF: 1 000 000 hours - Operating temp: -40degC~85degC - Read up to 20MB/s, Write up to 18MB/s
Overview:
Industrial Temp microSDHC10I card,Transcend industrial-grade microSD cards offer greater design flexibility and cost savings. Despite their compact size, the microSD cards have excellent temperature flexibility from -40°C to 85°C. The cards are manufactured with high-quality controller and MLC flash chips, providing excellent shock and vibration resistance and low power consumption that help to bring the performance and reliability advantages of industrial memory cards to small form factor devices.
Features:
- RoHS compliant
- Operating Voltage: 2.7 ~ 3.6V
- Operating Temperature: -40degC to 85degC
- Durability: 10,000 insertion/removal cycles
- Compatible with SD Specification Ver. 3.0
- SD File System Specification Ver. 3.0 compliant
- Supports Speed Class Specification Class 10
- Form Factor: 11mm x 15mm x 1mm
- Power cycle robustness
- Electrostatic protection (ICE 61000-4-2)
- Waterproof (IPX7)
- Industrial grade MLC NAND solution
- Support S.M.A.R.T funtion
Specifications:
| Product Code | TS32GUSDC10I
|
| Interface (connector) | microSD flash card connector |
| Form Factor | microSDHC flash card / microSDXC flash card |
| Flash Type | MLC |
| Capacity(GB) | 8GB / 16GB / 32GB / 64GB |
| Max. R/W Performance (MB/s) (Vary by density) | Read: 20MB/s, Write: 18MB/s |
| Op. Voltage(V) | 2.7V~3.6V |
| Power Consumption(W) | 0.72W |
| Op. Temp.( ) | -40 ~85 |
| Storage Temp.( ) | -40 ~85 |
| Humidity(%) | 0%~95% |
Description
Transcend Industrial Micro Secure Digital Card - 32GB - SDHC Class10 - MLC Type Flash - MTBF: 1 000 000 hours - Operating temp: -40degC~85degC - Read up to 20MB/s, Write up to 18MB/s
Overview:
Industrial Temp microSDHC10I card,Transcend industrial-grade microSD cards offer greater design flexibility and cost savings. Despite their compact size, the microSD cards have excellent temperature flexibility from -40°C to 85°C. The cards are manufactured with high-quality controller and MLC flash chips, providing excellent shock and vibration resistance and low power consumption that help to bring the performance and reliability advantages of industrial memory cards to small form factor devices.
Features:
- RoHS compliant
- Operating Voltage: 2.7 ~ 3.6V
- Operating Temperature: -40degC to 85degC
- Durability: 10,000 insertion/removal cycles
- Compatible with SD Specification Ver. 3.0
- SD File System Specification Ver. 3.0 compliant
- Supports Speed Class Specification Class 10
- Form Factor: 11mm x 15mm x 1mm
- Power cycle robustness
- Electrostatic protection (ICE 61000-4-2)
- Waterproof (IPX7)
- Industrial grade MLC NAND solution
- Support S.M.A.R.T funtion
Specifications:
| Product Code | TS32GUSDC10I
|
| Interface (connector) | microSD flash card connector |
| Form Factor | microSDHC flash card / microSDXC flash card |
| Flash Type | MLC |
| Capacity(GB) | 8GB / 16GB / 32GB / 64GB |
| Max. R/W Performance (MB/s) (Vary by density) | Read: 20MB/s, Write: 18MB/s |
| Op. Voltage(V) | 2.7V~3.6V |
| Power Consumption(W) | 0.72W |
| Op. Temp.( ) | -40 ~85 |
| Storage Temp.( ) | -40 ~85 |
| Humidity(%) | 0%~95% |
