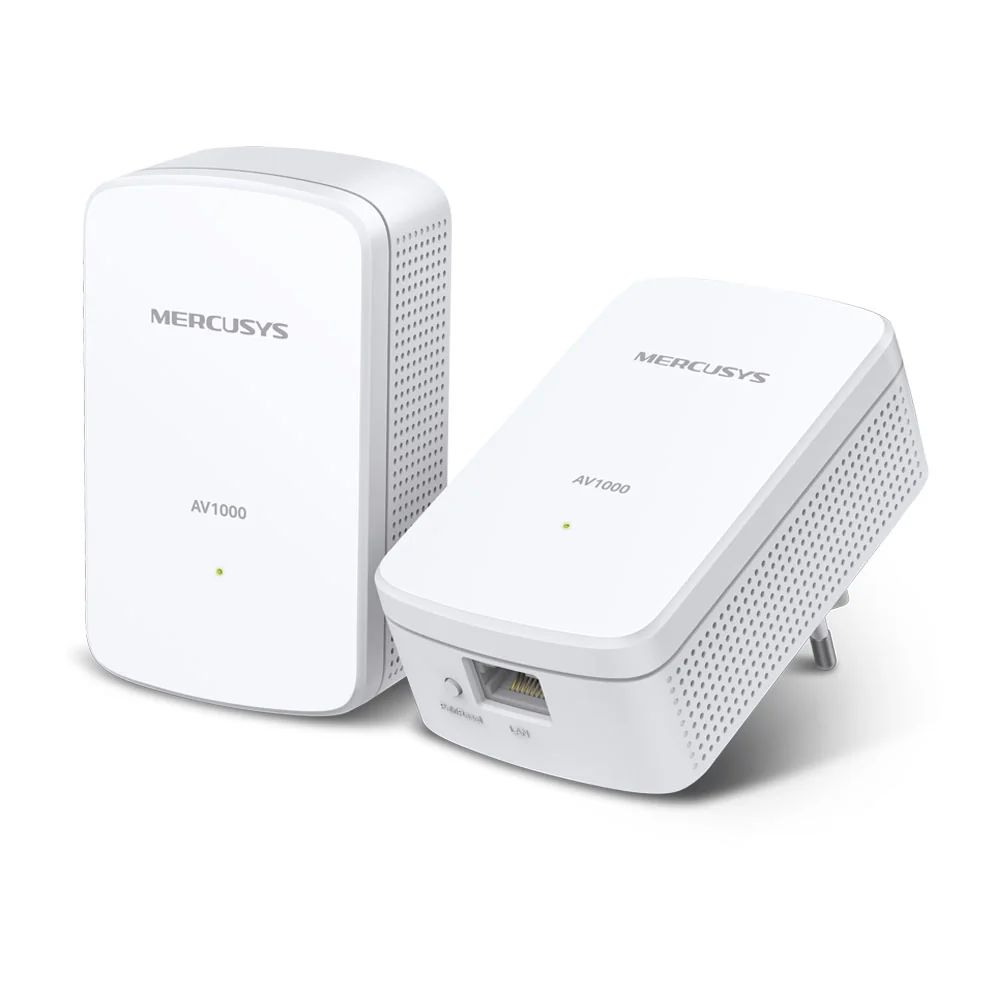

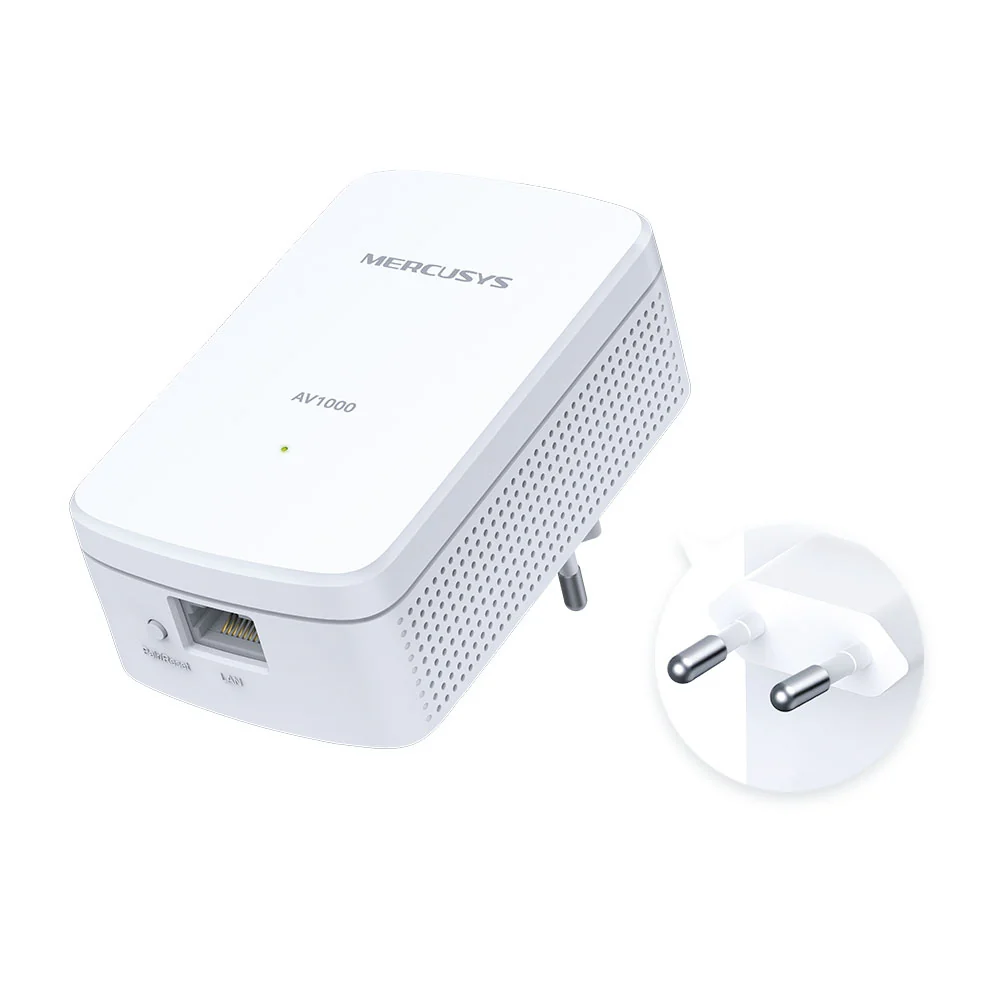

Mercusys MP500 KIT – AV1000 Gigabit Powerline Starter Kit

Extend your wired network through your home’s existing electrical wiring. The MP500 KIT delivers up to 1000 Mbps powerline speed with a Gigabit Ethernet port on each adapter, ideal for 4K streaming, online gaming, and stable connections in rooms where Wi-Fi is weak. No new cables or drilling required.

Key Features

• AV1000 HomePlug AV2 powerline technology for up to 1000 Mbps throughput
• Gigabit Ethernet port on each adapter for high-speed wired connections
• Up to 300 m transmission range on the same electrical circuit
• Plug and play setup—no configuration needed
• Pair/Reset button for quick, secure network pairing
• LED indicators show powerline and Ethernet status at a glance
• No new wires—uses existing electrical wiring

How It Works

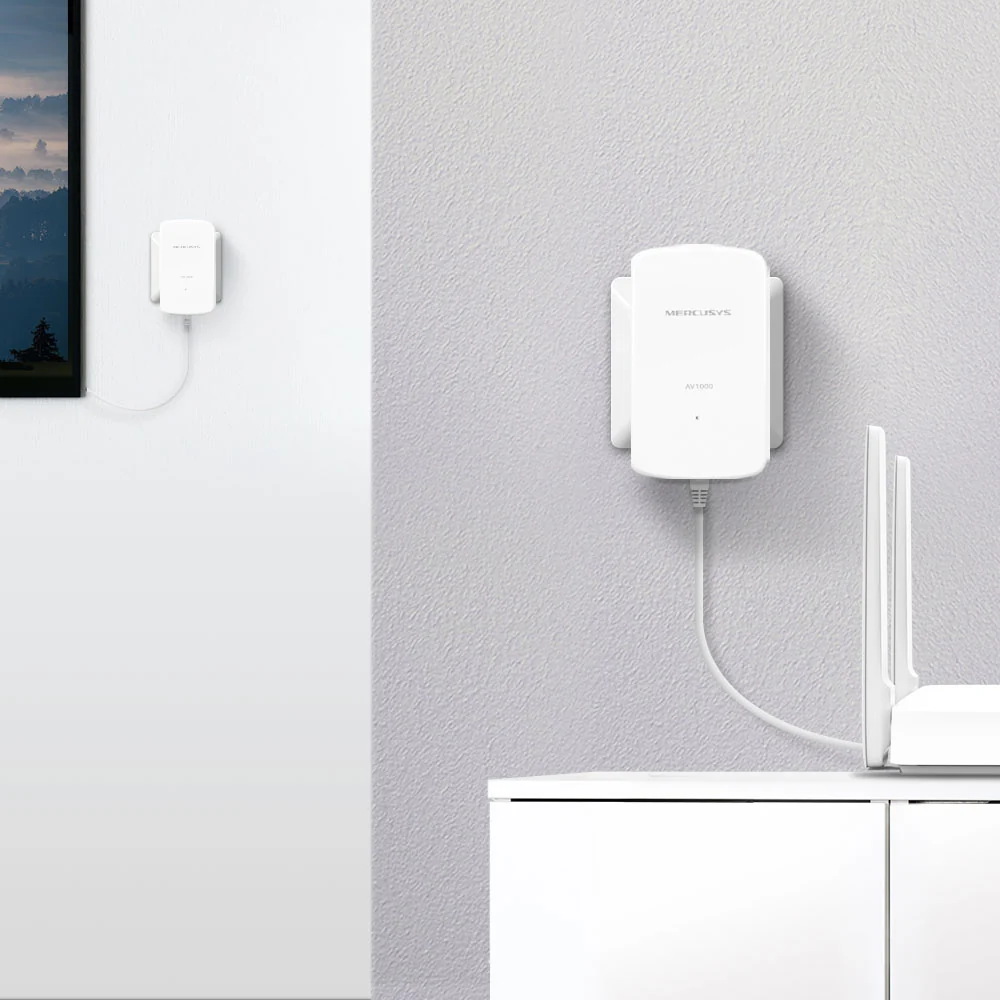

1. Connect one MP500 adapter to your router via Ethernet and plug it into a wall outlet.
2. Plug the second MP500 adapter into the outlet where you need internet and connect your device.
3. Press the Pair buttons to secure the connection and enjoy a stable wired network.

Use Case Scenarios

• Home Office: Get a stable Ethernet connection for your PC or VoIP phone without running cables across rooms.
• Smart TV & Media Centers: Stream 4K movies and series from Netflix or YouTube without Wi-Fi buffering.
• Gaming Setup: Connect your PlayStation, Xbox or PC directly to the router for lag-free multiplayer sessions.
• Security Systems: Provide a fast, reliable connection to IP cameras and NVR recorders in different rooms.
• Small Business Networks: Extend LAN connectivity to offices, reception areas or workstations without installing new cabling.

Specifications

• Model: MP500 KIT
• Powerline Standard: HomePlug AV2
• Data Transfer Rate: Up to 1000 Mbps Powerline
• Ethernet Ports: 1 × Gigabit RJ45 per adapter
• Range: Up to 300 m over electrical circuit
• Encryption: 128-bit AES via Pair button
• Dimensions (Each Unit): 101 × 60 × 36 mm
• Certifications: CE, RoHS
• System Requirements: Windows 11/10/8/7, macOS, Linux

Note: All powerline adapters must be connected on the same electrical circuit for optimal performance. Actual speeds may vary due to electrical conditions and network environment.
